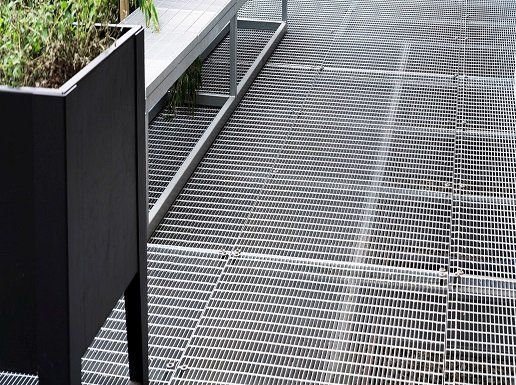

Stainless Steel Bar Grating for Heavy-Duty Walkways and Platforms

descripción
Resaltar:

Stainless Steel Bar Grating

,

Aluminum Steel Grating

,

Carbon Steel Bar Grating

Heavy-Duty Steel Grating Panels for Walkways and Platforms
Steel Bar Grating, also known as Grating, Bar Gratings or Welded Steel Bar Grating, is an extremely strong and durable solution for all load-bearing applications. Primarily used for pedestrian and light vehicle traffic, it's available in various bearing bar spacing and thicknesses to meet different application and load requirements. Available in either smooth top or serrated surface for slip resistance.
Stainless Steel Bar Grating for Heavy-Duty Walkways and Platforms 0
Material Options
  • Carbon Steel
  • Galvanized Steel
  • Stainless Steel
  • Aluminum
Surface Types
  • Flat Type
  • Serrated Type
  • I shape
Stainless Steel Bar Grating for Heavy-Duty Walkways and Platforms 1 Stainless Steel Bar Grating for Heavy-Duty Walkways and Platforms 2
Common Applications
  • Platform walkways
  • Flooring panels
  • Corridors and bridges
  • Well covers, drain covers, ditch covers
  • Stair treads
  • Fencing for petroleum, chemical, and power plants
  • Waste treatment plants
  • Civil engineering projects
  • Environmental projects
Steel Bar Grating Specifications
Vertical Bar Spacing Horizontal Bar Spacing Specification of Supporting Flat Steel (Width X Thickness)
30 100 G203 / 30 / 100 | G253 / 30 / 100 | G323 / 30 / 100 | G403 / 30 / 100 | G205 / 30 / 100 | G255 / 30 / 100
50 G203 / 30 / 50 | G253 / 30 / 50 | G323 / 30 / 50 | G403 / 30 / 50 | G205 / 30 / 50 | G255 / 30 / 50
40 100 G203 / 40 / 100 | G253 / 40 / 100 | G323 / 40 / 100 | G403 / 40 / 100 | G205 / 40 / 100 | G255 / 40 / 100
50 G203 / 40 / 50 | G253 / 40 / 50 | G323 / 40 / 50 | G403 / 40 / 50 | G205 / 40 / 50 | G255 / 40 / 50
60 50 - | G253 / 60 / 50 | G253 / 60 / 50 | G403 / 60 / 50 | G205 / 60 / 50 | G255 / 60 / 50
Vertical Bar Spacing Horizontal Bar Spacing Specification of Supporting Flat Steel (Width X Thickness)
30 100 G325 / 30 / 100 | G405 / 30 / 100 | G455 / 30 / 100 | G505 / 30 / 100 | G555 / 30 / 100 | G605 / 30 / 100
50 G325 / 30 / 50 | G405 / 30 / 50 | G455 / 30 / 50 | G505 / 30 / 50 | G555 / 30 / 50 | G605 / 30 / 50
40 100 G325 / 40 / 100 | G405 / 40 / 100 | G455 / 40 / 100 | G505 / 40 / 100 | G555 / 40 / 100 | G605 / 40 / 100
50 G325 / 40 / 50 | G405 / 40 / 50 | G455 / 40 / 50 | G505 / 40 / 50 | G555 / 40 / 50 | G605 / 40 / 50
60 50 G325 / 60 / 50 | G405 / 60 / 50 | G455 / 60 / 50 | G505 / 60 / 50 | G555 / 60 / 50 | G605 / 60 / 50
Stainless Steel Bar Grating for Heavy-Duty Walkways and Platforms 3 Stainless Steel Bar Grating for Heavy-Duty Walkways and Platforms 4
