Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5

Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5
Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5
Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5 Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5 Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5 Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5

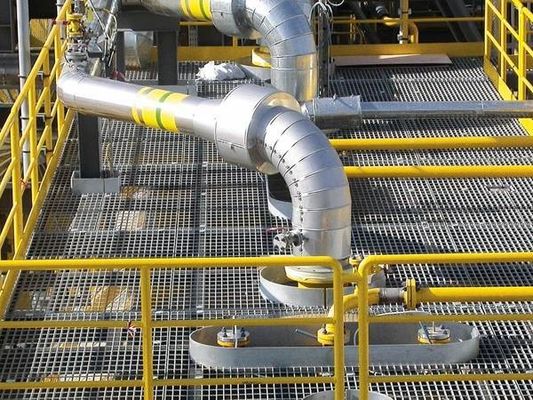

Ampliación de imagen :  Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5

Datos del producto:
Contacto

Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5

descripción
Resaltar:

Galvanized Steel Grating

,

Anti-Slip Platform Steel Grating

,

Bearing Bar 25x3 Steel Bar Grating

Galvanized Anti-Slip Steel Grating Walkway Platform with CE and ISO Certification

Steel grating, also known as steel bar grating, is constructed from mild carbon steel with various surface treatment options. This material provides an economical yet high-strength solution suitable for most industrial and commercial applications. Available in multiple materials including stainless steel, aluminum, and galvanized steel.

Product Specifications
Bearing Bar 20x5, 25x3, 25x4, 25x5, 30x3, 30x4, 30x5, 32x3, 32x5, 40x5, 50...75x8mm, etc.
Bearing Bar Depth 25, 30, 30.16, 32.5, 34.3, 40, 50, 60, 62, 65mm, etc.
Cross Bar 5x5, 6x6, 8x8mm (twisted bar or round bar)
Cross Bar Spacing 40, 50, 60, 65, 76, 100, 101.6, 120, 130mm or as per customer requirements
Flat Bar Type Plain, Serrated (tooth-like), I bar (I section)
Surface Treatment Untreated, Hot dip galvanized, Cold dip galvanized, PVC coated, Powder coated

1. Special sizes available upon request.
2. Standard packing: in plastic rolls. Custom packing available upon request.

Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5 0
  • Bearing Load bar: 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 35x5, 40x5, 50x5 to 75x10mm
  • Bearing Load bar pitch: 12.5, 15, 20, 25, 30, 35, 40, 45, 60mm. US standard: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16", 1"x1/4", 1-1/4"x1/4", 1-1/2"x1/4" etc.
  • Cross bar pitch: 40, 50, 100mm
  • Surface finishing treatment: Untreated Black, Electric Galvanized, Hot Dipped Galvanized, Painted
  • Standards:
    • China: YB/T 4001.1-2007
    • USA: ANSI/NAAMM(MBG531-88)
    • UK: BS4592-1987
    • Australia: AS1657-1985
Product Series Specifications
Series Pitch of Bearing Bar Pitch of Cross Bar Specifications of Bearing Bar (Width x Thickness)
1 30 100
50		 WA253/1, WA323/1, WA254/1, WA404/1, WA205/1, WA255/1
WB253/1, WB323/1, WB254/1, WB404/1, WB205/1, WB255/1
2 40 100
50		 WA253/2, WA323/2, WA254/2, WA404/2, WA205/2, WA255/2
WB253/2, WB323/2, WB254/2, WB404/2, WB205/2, WB255/2
3 60 50 WB53/3, WB323/3, WB254/3, WB404/3, WB205/3, WB255/3

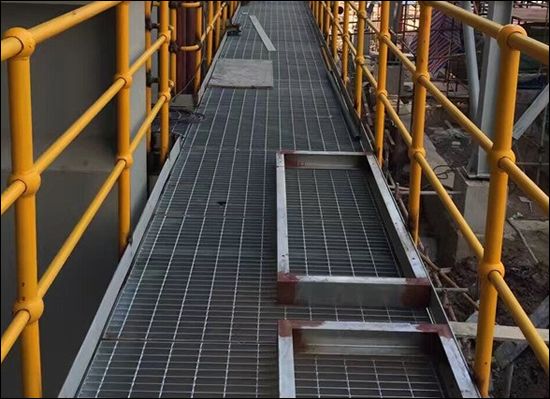

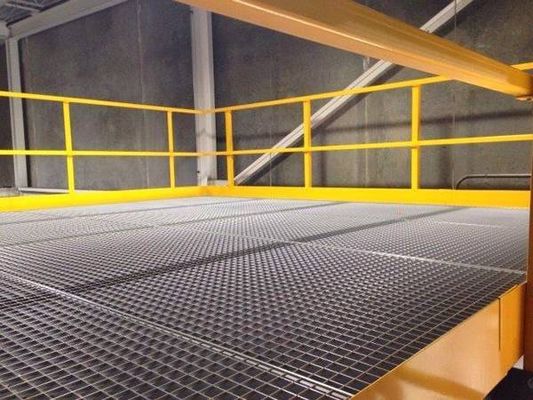

Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5 1 Galvanized Anti-Slip Steel Grating Walkway Platform with Bearing Bar 25x3 and Cross Bar 5x5 2
