Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly
Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

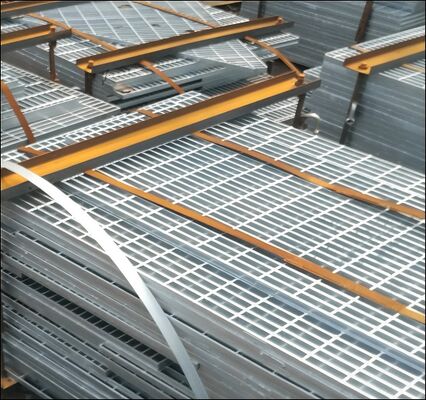

Ampliación de imagen :  Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

Datos del producto:
Nombre de la marca: Gnee
Pago y Envío Términos:
Cantidad de orden mínima: 2 piezas
Detalles de empaquetado: Fijar con cinta metálica Embalaje con palet, envoltura exterior con película plástica impermeable Re
Tiempo de entrega: Enviado en 20 días después del pago
Capacidad de la fuente: 300000 metros cuadrados/metros cuadrados por mes
Contacto

Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly

descripción
Resaltar:

Trench Drain Channel Steel Grating

,

Heavy Load Bearing Metal Grating

,

Open Grid Assembly Galvanized Steel Grating

China Suppliers Trench Drain Channel and Grate Hot-DIP Galvanized Steel Grating
Steel grating, also known as bar grating or metal grating, is an open grid assembly of metal bars. The bearing bars run in one direction and are spaced by rigid attachment to perpendicular cross bars or by bent connecting bars extending between them. This design is intended to hold heavy loads with minimal weight. Steel grating is widely used for floors, mezzanines, stair treads, fencing, trench covers, and maintenance platforms in factories, workshops, motor rooms, trolley channels, heavy loading areas, boiler equipment, and heavy equipment areas.
Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly 0
Common Steel Grating Specification
Bearing bar pitch Cross bar pitch Bearing bar size (depth*thickness)
20×3 25×3
25×3 40×3 20×5 | 20×5
30 100 G203/30/100 | G253/30/100
G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50
G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100
G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50
G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G203/60/50
G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
32×5 40×5
45×5 50×5 55×5 | 60×5
30 100 G325/30/100 | G405/30/100
G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50
G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100
G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50
G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50
G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
Raw Material
  • Galvanized steel grating: A36 is the common grade. After welding is completed, surface treatment will be carried out: mild steel grating will be hot-dip galvanized or painted to make it look beautiful or corrosion-resistant.
  • Stainless steel grating: Common grade is SS201, 304, 316, 316L. Stainless steel grating itself has a strong corrosion resistance, suitable for food processing and chemical fields.
  • I Bar Steel Grating: With its unique I-section design, it exhibits excellent bearing capacity and stability, and is suitable for heavy-loaded industrial platforms, bridges and other places, and has both ventilation and light transmission properties.

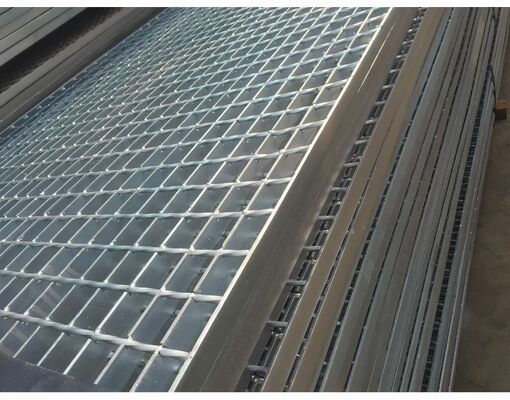

Hot-DIP Galvanized Steel Grating for Trench Drain Channel with Heavy Load Bearing Open Grid Assembly 1
