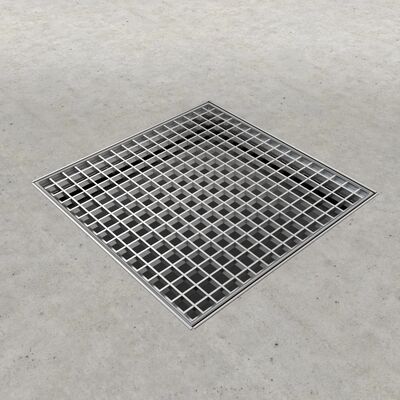

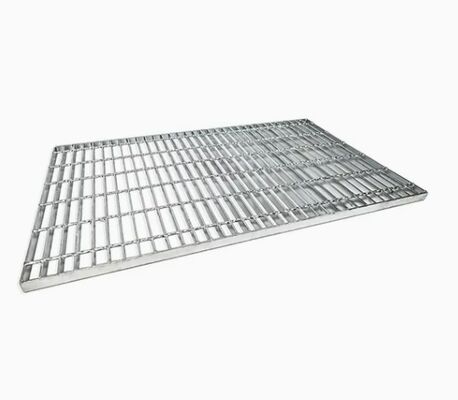

Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

Name: Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors
Brand: Gnee Steel (tianjin) Co., Ltd
Price: 399.30 USD
Availability: InStock

Todos los productos

reja de acero galvanizada
(41)

Reja de acero serrada
(48)

cubierta de acero del dren de la reja
(57)

Reja plástica del piso
(33)

Pisadas de escalera de acero galvanizadas
(73)

reja de acero inoxidable
(46)

Reja de acero bloqueada de la presión
(27)

Clips de rejilla de acero
(12)

Reja del acero de la plataforma
(53)

reja de acero resistente
(40)

Alambre de hierro galvanizado
(36)

barra de acero de rejilla
(20)

malla metálica expandida
(17)

Perforada de malla de metal
(34)

Comentarios de cliente

Mi rejilla vino hoy y cupo perfectamente. Gracias. ¡Déjeme saber si hay dondequiera que puedo dejar retroalimentación positiva sobre su compañía!

—— Andrew Mullen

Estoy en línea para chatear ahora

Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

Ampliación de imagen : Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

Datos del producto:

Nombre de la marca:	Gnee

Pago y Envío Términos:

Cantidad de orden mínima:	2 piezas
Detalles de empaquetado:	Fijar con cinta metálica Embalaje con palet, envoltura exterior con película plástica impermeable Re
Tiempo de entrega:	Enviado en 20 días después del pago.
Capacidad de la fuente:	300000 metros cuadrados/metros cuadrados por mes

Contacto

Heavy Duty Stainless Steel Bar Grating 19W4 for Walkway Platforms and Industrial Floors

descripción

Resaltar:

Heavy Duty Steel Bar Grating

Stainless Steel Metal Grating

19W4 Steel Grating

Stainless Steel Catwalk Deck Floor Bar Grating

Steel bar grating features high strength and firm structural integrity, manufactured from carbon steel, aluminum, or stainless steel. Available in multiple manufacturing methods including welded, press-locked, swage-locked, and riveted gratings. Surface options include smooth and serrated patterns for enhanced traction. With diverse styles and sizes available, steel gratings are extensively used in stair treads, walkways, platforms, flooring systems, trench covers, wheeled equipment, security screens, and heavy-duty construction applications.

Technical Specifications

Standard Dimensions:

Bearing Bar Pitches: 15, 22, 25, 30, 32.5, 34, 40, 50, 60, 80, 90mm (25, 30, 34, and 40mm recommended)
Cross Bar Pitches: 24-200mm (50mm, 76mm, and 100mm recommended)
Bearing Bar Shapes: F - Plain style, S - Serrated style, I - I-section style
Surface Treatments: G - Hot dipped galvanized, P - Painted, U - Untreated

Metal Bar Grating Components

Span	Total span measurement
Width	Panel width dimension
Bearing Bars	Primary load carrying structural elements
Bearing Bars Spacing	Center-to-center measurement in 1/16″ increments. Standard industrial flooring spacing is 19/16″ (1-3/16″). Other common spacings include 15/16″, 11/16″, 1/2″, and 7/16″ on center.
Bearing Bars Depth	Ranges from 3/4″ to 7″ depending on load requirements
Bearing Bars Thickness	Ranges from 1/8″ to 1/2″ based on anticipated loads
Cross Bars	Structural elements that secure bearing bar positioning
Cross Bar Spacing	Center-to-center measurement in 1″ increments. Standard spacing is 4″ or 2″ on center.

etiqueta:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
