Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage

Name: Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage
Brand: Gnee Steel (tianjin) Co., Ltd
Price: 399.30 USD
Availability: InStock

Todos los productos

reja de acero galvanizada
(41)

Reja de acero serrada
(48)

cubierta de acero del dren de la reja
(57)

Reja plástica del piso
(33)

Pisadas de escalera de acero galvanizadas
(73)

reja de acero inoxidable
(46)

Reja de acero bloqueada de la presión
(27)

Clips de rejilla de acero
(12)

Reja del acero de la plataforma
(53)

reja de acero resistente
(40)

Alambre de hierro galvanizado
(36)

barra de acero de rejilla
(20)

malla metálica expandida
(17)

Perforada de malla de metal
(34)

Comentarios de cliente

Mi rejilla vino hoy y cupo perfectamente. Gracias. ¡Déjeme saber si hay dondequiera que puedo dejar retroalimentación positiva sobre su compañía!

—— Andrew Mullen

Estoy en línea para chatear ahora

Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage

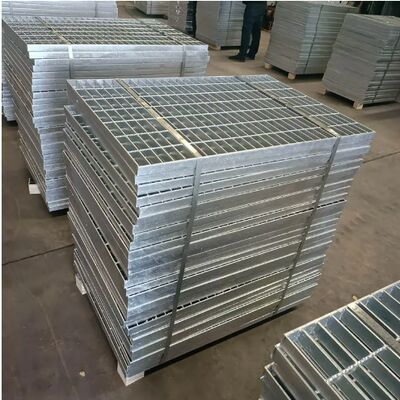

Ampliación de imagen : Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage

Datos del producto:

Nombre de la marca:	Gnee

Pago y Envío Términos:

Cantidad de orden mínima:	2 piezas
Detalles de empaquetado:	Fijar con cinta metálica Embalaje con palet, envoltura exterior con película plástica impermeable Re
Tiempo de entrega:	Enviado en 20 días después del pago.
Capacidad de la fuente:	300000 metros cuadrados/metros cuadrados por mes

Contacto

Stainless Steel Serrated Bar Grating with 19W4 for Heavy Duty Walkway and Drainage

descripción

Resaltar:

Stainless Steel Bar Grating

Serrated Bar Metal Grating

19W4 Steel Grating

Stainless Steel Open End Steel Mesh Walkway Channel Trench Driveway Drain Flooring Drainage HDG Serrated Bar Welded Metal Grating

Steel grating is manufactured by welding bearing steel bars and cross twisted bars according to required pitch spacing between steel bars using specialized welding machines. This grid building material offers exceptional strength and durability for various industrial applications.

Product Features

Constructed from high-quality standard steel materials
Excellent hardness and high tensile strength
Extremely strong and durable construction
Superior corrosion resistance
Outstanding anti-slip performance
Available in various spacing pitches, thicknesses, and heights

Surface Finishing Options

Standard steel grating features hot-dipped galvanized coating for maximum corrosion protection. Custom zinc coatings are available according to client specifications. These finishes provide both beautiful surface appearance and excellent performance in industrial construction projects.

Material Specifications

Flat Bars: Low Carbon Steel Smooth, Low Carbon Steel Serrated, Low Carbon I-Shaped Steel Bars
Cross Bars: Steel Twisted Square, Steel Round Cross Bars
Stainless Steel Options: 304 Grade Flat Bars, 316 Grade Flat Bars

Popular Steel Grating Specifications

Item	Bearing Bar (mm)	Cross Bar (mm)	Pitch of Bearing Bar (mm)	Pitch of Cross Bar (mm)
SG253	25x3	6	20,30,40,50	50,100
SG254	25x4	6,8	20,30,40,50	50,100
SG255	25x5	6,8	20,30,40,50	50,100
SG304	30x4	8	20,30,40,50	50,100
SG305	30x5	8	20,30,40,50	50,100
SG355	35x5	8	20,30,40,50	50,100
SG404	40x4	8	20,30,40,50	50,100
SG405	40x5	8	20,30,40,50	50,100
SG455	45x5	8	20,30,40,50	50,100
SG505	50x5	8	20,30,40,50	50,100
SG605	60x5	8	30,40,50,60	50,100
SG705	70x5	8	30,40,50,60	50,100

etiqueta:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
