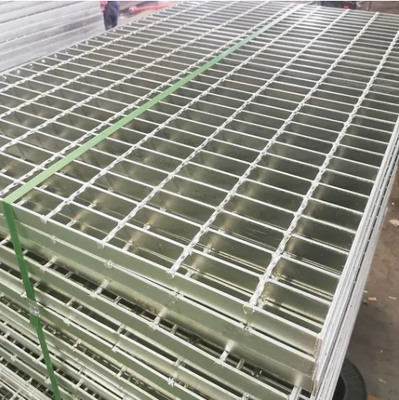

Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads

Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads
Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads

Ampliación de imagen :  Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads

Datos del producto:
Nombre de la marca: Gnee
Pago y Envío Términos:
Cantidad de orden mínima: 2 piezas
Detalles de empaquetado: Fijar con cinta metálica Embalaje con palet, envoltura exterior con película plástica impermeable Re
Tiempo de entrega: Enviado en 20 días después del pago.
Capacidad de la fuente: 300000 metros cuadrados/metros cuadrados por mes
Contacto

Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads

descripción
Resaltar:

Hot-DIP Galvanized Steel Grating

,

Stainless Steel and Iron Grating

,

Outdoor Exterior Stair Treads Metal Grating

Factory Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads
Galvanized platform steel grating is a durable flooring system constructed from interconnected steel bars forming a grid pattern. Through hot-dip galvanization, these gratings receive a protective zinc coating that prevents rust and corrosion, making them ideal for environments exposed to moisture, chemicals, and outdoor elements.
Dimensions & Customization
Our steel gratings are typically rectangular and can be customized to your specific requirements. Common length specifications include 1000mm and 1200mm, with widths available in 300mm, 400mm, 500mm, and other sizes. The flat steel thickness ranges from 3mm to 10mm, while crossbar diameters measure between 3mm and 8mm.
Weight Specifications
The weight of steel grating varies based on size, material composition, and structural design. Stainless steel gratings are typically heavier than carbon steel equivalents. Denser grid patterns with thicker flat steel and crossbars also increase weight. Standard carbon steel platform step grating typically weighs between 30kg and 50kg per square meter.
Appearance & Construction
Our gratings feature flat steel and crossbars arranged and welded at precise intervals to create a uniform grid structure. The surface remains flat with securely welded intersections, free from burrs and defects. After hot-dip galvanizing, the surface exhibits a consistent silver-gray finish with a distinctive metallic luster.
Common Steel Grating Specifications
Bearing Bar Pitch Cross Bar Pitch Bearing Bar Size (Depth×Thickness)
20×3 | 25×3 25×3 | 40×3 20×5 | 20×5
30 100 G203/30/100 | G253/30/100 | G323/30/100 | G403/30/100 | G205/30/100 | G255/30/100
50 G203/30/50 | G253/30/50 G323/30/50 | G403/30/50 | G205/30/50 | G255/30/50
40 100 G203/40/100 | G253/40/100 | G323/40/100 | G403/40/100 | G205/40/100 | G255/40/100
50 G203/40/50 | G253/40/50 G323/40/50 | G403/40/50 | G205/40/50 | G255/40/50
60 50 G203/60/50 | G253/60/50 | G253/60/50 | G403/60/50 | G205/60/50 | G255/60/50
Bearing Bar Pitch Cross Bar Pitch Bearing Bar Size (Depth×Thickness)
32×5 | 40×5 45×5 | 50×5 55×5 | 60×5
30 100 G325/30/100 | G405/30/100 | G455/30/100 | G505/30/100 | G555/30/100 | G605/30/100
50 G325/30/50 | G405/30/50 G455/30/50 | G505/30/50 | G555/30/50 | G605/30/50
40 100 G325/40/100 | G405/40/100 | G455/40/100 | G505/40/100 | G555/40/100 | G605/40/100
50 G325/40/50 | G405/40/50 G455/40/50 | G505/40/50 | G555/40/50 | G605/40/50
60 50 G325/60/50 | G405/60/50 | G455/60/50 | G505/60/50 | G555/60/50 | G605/60/50
Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads 0 Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads 1 Hot-DIP Galvanized Stainless Steel and Iron Grating for Outdoor Exterior Stair Treads 2
