Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use

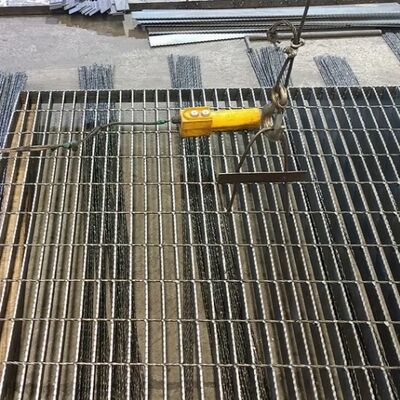

Ampliación de imagen : Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use

Datos del producto:

Nombre de la marca:	Gnee

Pago y Envío Términos:

Cantidad de orden mínima:	2 piezas
Detalles de empaquetado:	Fijar con cinta metálica Embalaje con palet, envoltura exterior con película plástica impermeable Re
Tiempo de entrega:	Enviado en 20 días después del pago.
Capacidad de la fuente:	300000 metros cuadrados/metros cuadrados por mes

Contacto

Hot-Dipped Galvanized Steel Grating with High Tensile Strength and Corrosion Resistance for Industrial Use

descripción

Resaltar:

Hot-Dipped Galvanized Steel Grating

Corrosion Resistant Steel Grating

High Tensile Strength Metal Bar Grating

Stainless Steel Carbon Metal Floor Grating

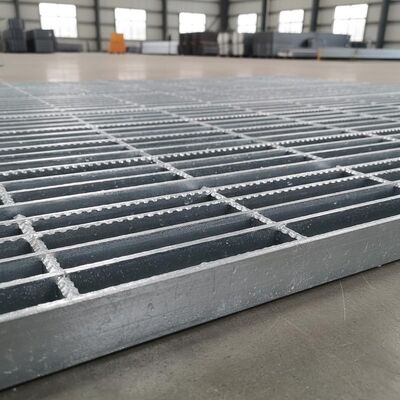

High-quality steel grating featuring smooth plain tooth flat bearing bars with galvanized coating, designed for industrial and commercial building applications.

Product Features

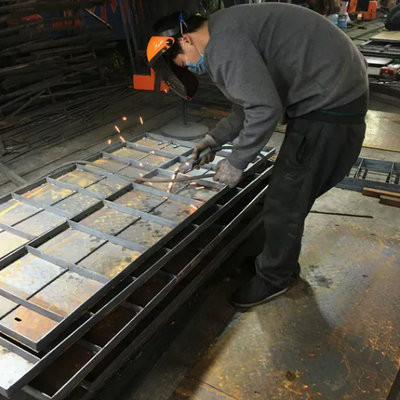

Steel grating is manufactured by welding bearing steel bars and cross twisted bars according to required pitch spacing using specialized welding machines. This grid building material offers exceptional performance characteristics:

High tensile strength and excellent hardness from quality standard steel materials
Exceptional durability and corrosion resistance
Superior anti-slip performance for safety
Available in various spacing pitches, thicknesses, and heights to meet specific load bearing requirements

Surface Finishing Options

Standard steel grating features hot-dipped galvanized coating, with zinc coating available according to client specifications. Available as hot-dip galvanized steel grating or stainless steel grating with beautiful surface appearance and excellent performance for industrial construction projects.

Material Specifications

Bearing Bars: Low Carbon Steel Smooth Flat Bars, Low Carbon Steel Serrated Bars, Low Carbon I-Shaped Steel Bars
Cross Bars: Steel Twisted Square Cross Bars, Steel Round Cross Bars
Stainless Steel Options: 304 Grade Flat Bars, 316 Grade Flat Bars

Technical Specifications

Bearing Bar Sizes: 25x3, 25x4, 30x3, 30x4, 30x5, 32x5, 40x5, 50x5 to 75x10mm
Bearing Bar Pitch: 12.5, 15, 20, 25, 30, 35, 40, 45, 60mm
US Standard Sizes: 1"x3/16", 1-1/4"x3/16", 1-1/2"x3/16", 1"x1/4", 1-1/4"x1/4", 1-1/2"x1/4"
Cross Bar Pitch: 38, 50, 100
Surface Finishing: Black, electric galvanized, hot dipped galvanized, painted

Industry Standards

China: YB/T 4001.1-2007
USA: ANSI/NAAMM (MBG531-88)
UK: BS4592-1987
Australia: AS1657-1985

Product Series Specifications

Series	Pitch of Bearing Bar	Pitch of Cross Bar	Specifications of Bearing Bar (Width x Thickness)
1	30	100	WA253/1, WA253/1, WA254/1, WA404/1, WA205/1, WA255/1
1	30	50	WB253/1, WB253/1, WB254/1, WB404/1, WB205/1, WB255/1
2	40	100	WA253/2, WA323/2, WA254/2, WA404/2, WA205/2, WA255/2
2	40	50	WB253/2, WB323/2, WB254/2, WB404/2, WB205/2, WB255/2
3	60	50	WB53/3, WB323/3, WB254/3, WB404/3, WB205/3, WB255/3

Series	Pitch of Bearing Bar	Pitch of Cross Bar	Specifications of Bearing Bar (Width x Thickness)
1	30	100	WA325/1, WA405/1, WA455/1, WA505/1, WA555/1, WA605/1
1	30	50	WB325/1, WB405/1, WB455/1, WB505/1, WB555/1, WB605/1
2	40	100	WA325/2, WA405/2, WA455/2, WA505/2, WA555/2, WA605/2
2	40	50	WB325/2, WB405/2, WB455/2, WB505/2, WB555/2, WB605/2
3	60	50	WB325/3, WB405/3, WB455/3, WB505/3, WB555/3, WB605/3

etiqueta:

heavy duty steel grating,

steel catwalk grating,

stainless steel bar grating
